BENTISM 32 Manual Hand Plate Shear Machine Benchtop Cutter Metal Sheet Processing

$38.39
$89.2
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    Product Description

    BENTISM HS-800 32" Manual Hand Plate Shear Machine
    This plate cutter can cut larger sized materials. It can easily cope with cutting large sized sheet metal. It can cut large size materials at one time without multiple cuts, which greatly improves your work efficiency.
    32" Long Blade Steel Plate Cutting Machine
    Maximum Cutting Size: Length: 31.5"" / 800mm Thickness: 0.06"" / 1.5mm. can cut larger size materials. Can easily cope with cutting large sized sheet metal. Can cut large size material at one time, no need to cut multiple times, which greatly improves your working efficiency.

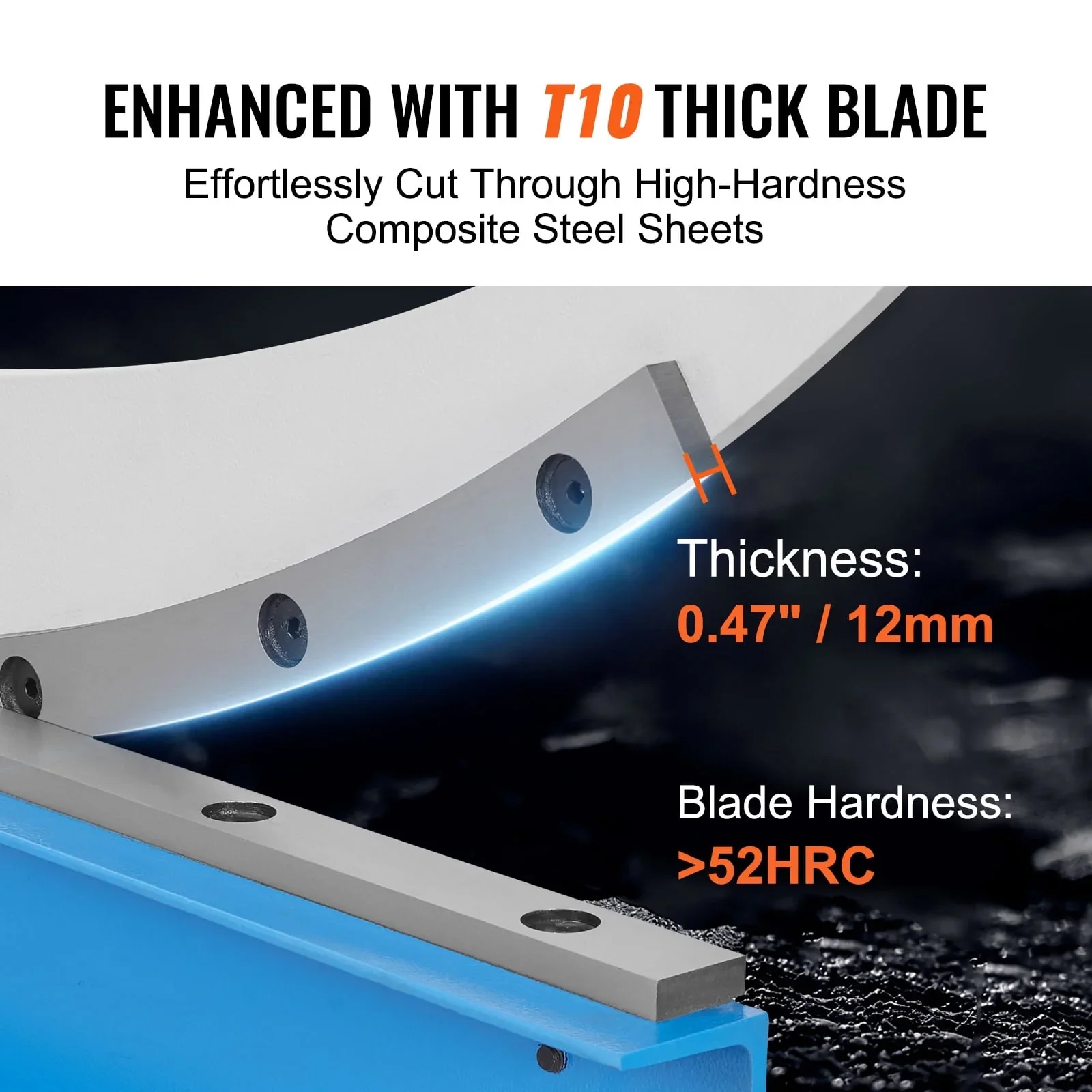

    Adopt T10 Steel Blade
    Blade hardness: >52HRC; Thickness: 0.47" / 12mm, all kinds of hard metal plates can be easily coped with. For example, mild steel plate, aluminum plate, aluminum alloy plate, electro galvanized plate, tinned plate, composite steel plate, color coated steel plate , this versatility makes it more convenient for you when working.

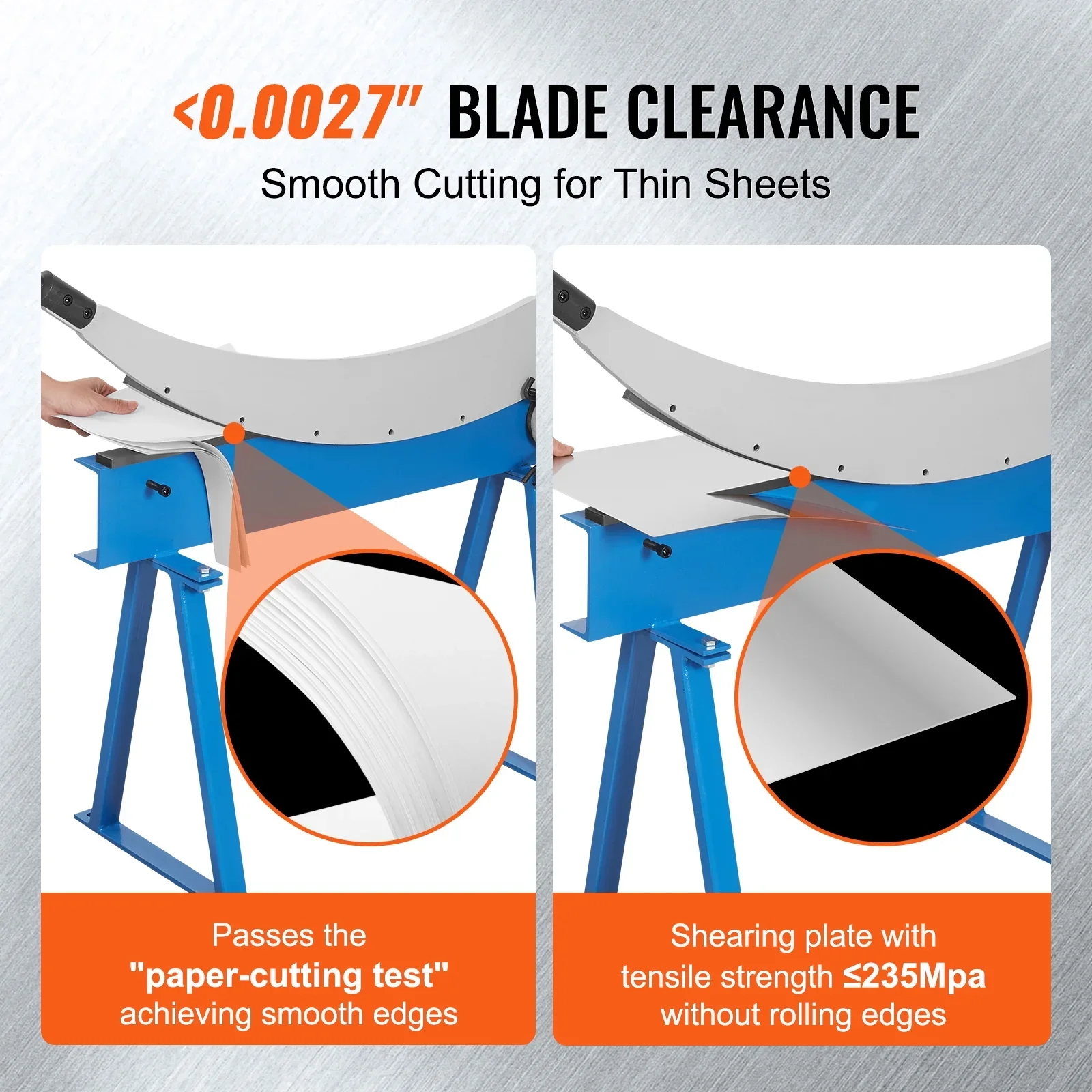

    Smooth Cutting Edges
    <0.0027"Edge clearance, through the paper cutting test, paper can also cut a completely smooth edge. Cutting steel plate material, more can realize the edge smooth without burr, avoid material is wasted or destroyed.

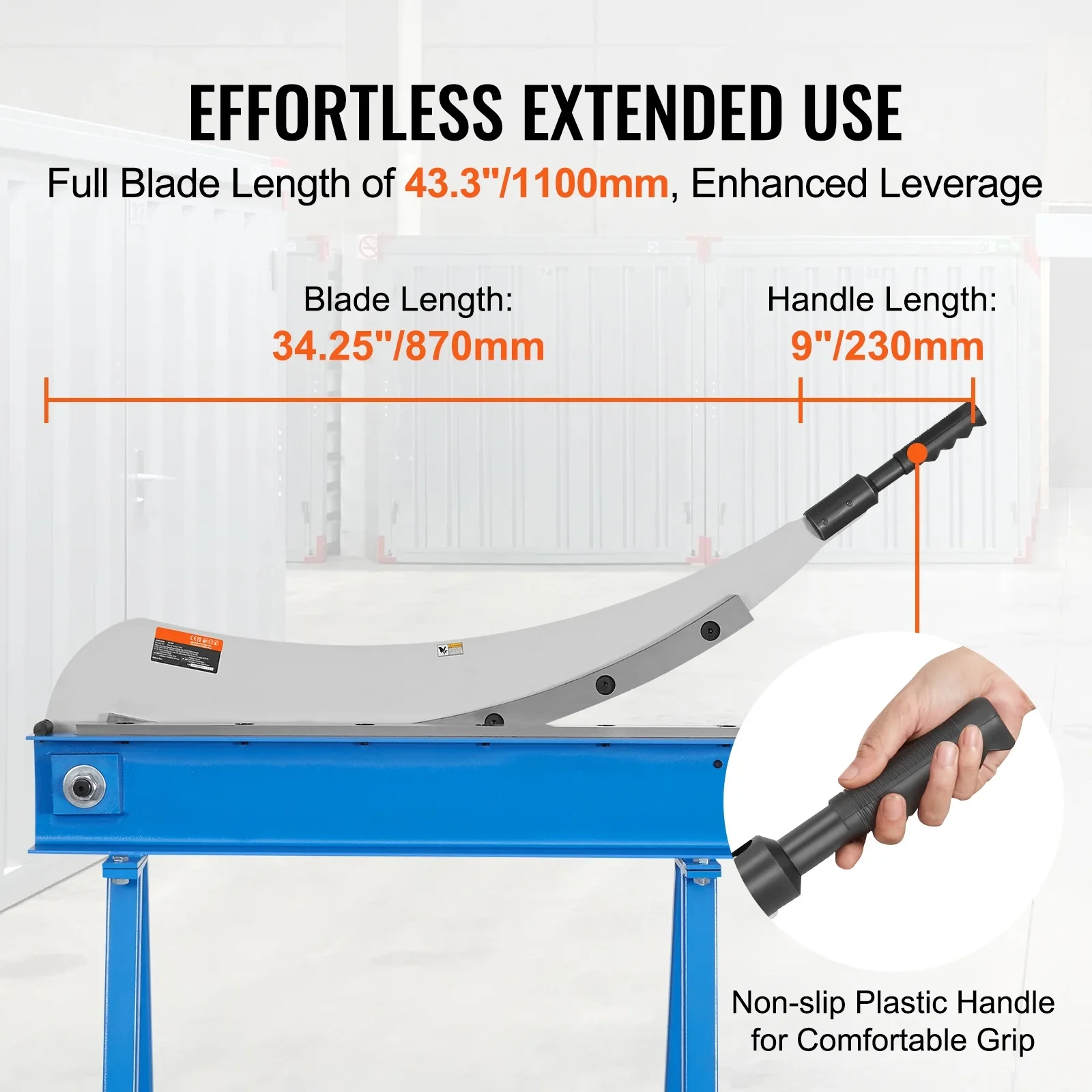

    Long Handle & Save Power
    The long handle design allows you to generate more power with less effort, greatly reducing the difficulty and fatigue of cutting. Whether you need to cut thick or hard materials, this plate cutter makes it easy for you and greatly improves your work efficiency

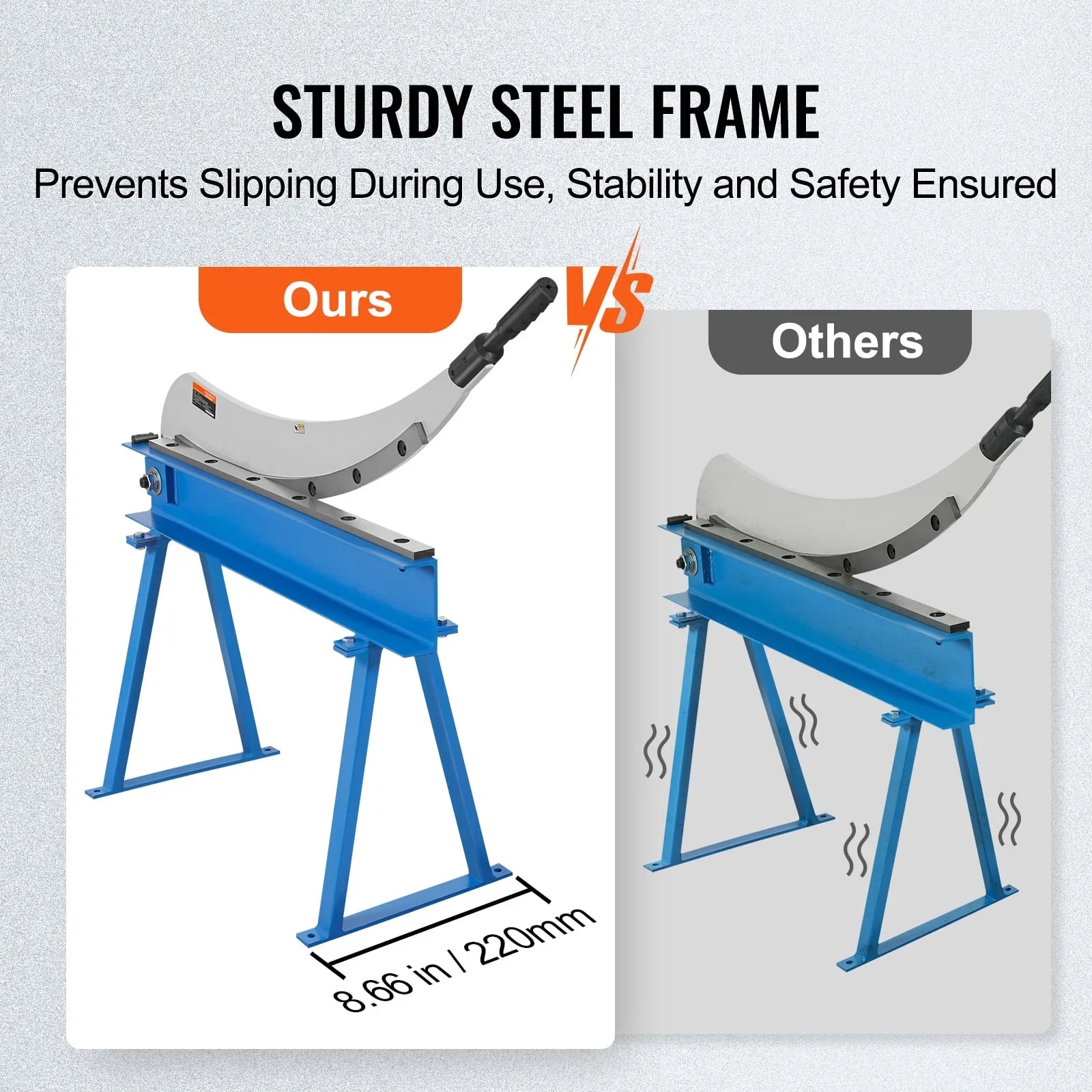

    Solid Body
    Sturdy steel frame, preventing the use of the process of shaking, stable and safe, so that you have more confidence in cutting materials, do not need to affect their movements because of will be on the machine instability factors.
    Bottom with mounting holes
    Can be installed on the workbench to further enhance stability and work efficiency.

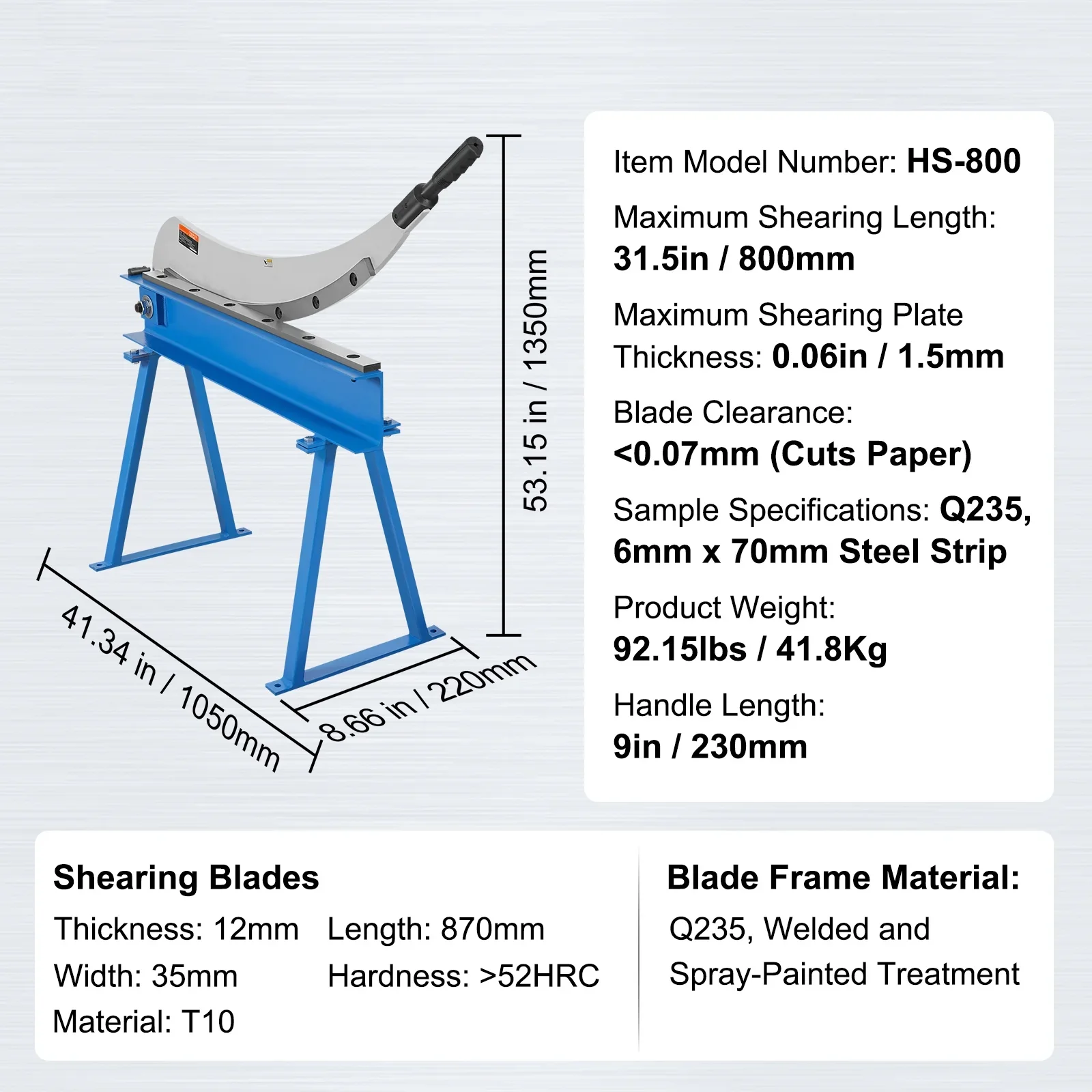

    Specifications

    Max. Shearing Length: 31.5"/800mm
    Max. Shearing Plate Thickness: 0.06" / 1.5mm
    Blade Clearance: <0.07mm (Cuts Paper)
    Sample Specifications: Q235, 6mm x 70mm Steel Strip
    Shear Plate Tensile Strength: ��235Mpa
    Operating Method: Floor Bolt Fixation, Manual Cutting
    Surface Treatment & Color: Painted, Blackened Treatment, Blue
    Primary Material: Q235, T10
    Product Weight: 92.15lbs / 41.8Kg
    Handle Length: 9"/230mm

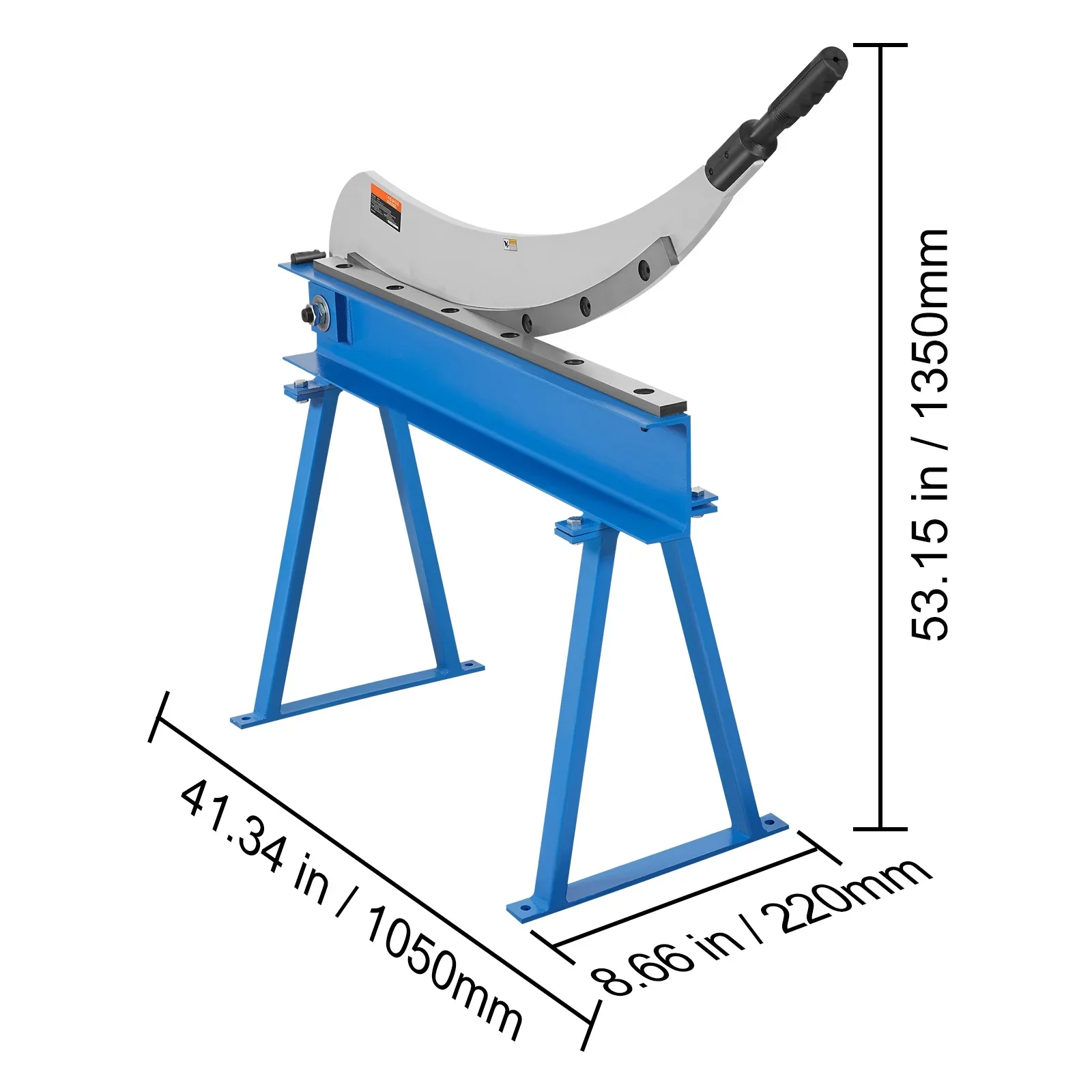

    Product Dimensions: 53.15x8.66x41.34"/1350x220x1050mm

    Package Content

    2 x Brackets
    4 x Bolts
    4 x Nuts
    8 x Washers
    • 32" Long Blade Steel Plate Cutting Machine: Maximum Cutting Size: Length: 32" / 800mm Thickness: 0.06" / 1.5mm. can cut larger size materials. Can easily cope with cutting large sized sheet metal. Can cut large size material at one time, no need to cut multiple times, which greatly improves your working efficiency.
    • Adopt T10 steel blade: Blade hardness: >52HRC; Thickness: 0.47" / 12mm, all kinds of hard metal plates can be easily coped with. For example, mild steel plate, aluminum plate, aluminum alloy plate, electro galvanized plate, tinned plate, composite steel plate, color coated steel plate, this versatility makes it more convenient for you when working.
    • Smooth cutting edges: <0.0027"Edge clearance, through the paper cutting test, paper can also cut a completely smooth edge. Cutting steel plate material, more can realize the edge smooth without burr, avoid material is wasted or destroyed.
    • Long Handle & Save Power: The long handle design allows you to generate more power with less effort, greatly reducing the difficulty and fatigue of cutting. Whether you need to cut thick or hard materials, this plate cutter makes it easy for you and greatly improves your work efficiency.
    • Solid Body: Sturdy steel frame, preventing the use of the process of shaking, stable and safe, so that you have more confidence in cutting materials, do not need to affect their movements because of will be on the machine instability factors.
